TERU Electronics

PRE-VENTA

Consulte por unidades de prueba en Montevideo o documentación a: info@teruelectronics.com

PRE-SALE

Ask about test units in Montevideo or documentation at: info@teruelectronics.com

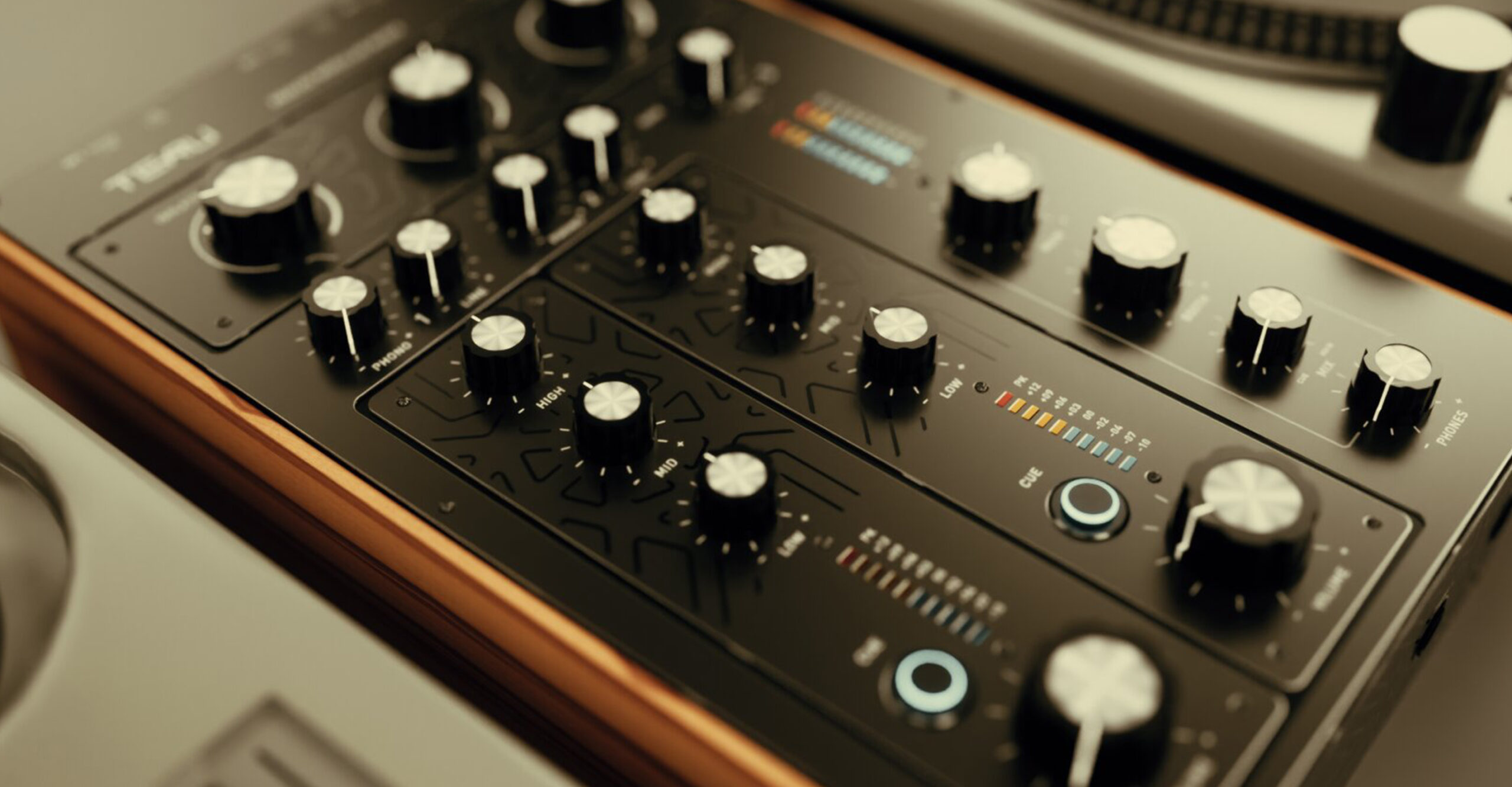

Render credits: Juan Pablo Maiso

Especificaciones técnicas de TERU AM2 / Technical specifications of TERU AM2

Main Mix Isolator

3 way, 24dB/Octave.
Bass to Mid crossover freq: 300Hz.
Mid to High crossover freq: 3kHz.
Cut gain: Infinity/Boost 12dB.

Master controls

Master volume via ALPS RK27
Blue Velvet Potentiometer.
Booth volume via ALPS RK27
Blue Velvet Potentiometer.
Cue/Mix.
Headphones volume.

Connectors

Channel inputs: RCA (Phono/Line).
Rec (premaster): RCA.
Booth 2 balanced 6,3 mm TRS.
Main: 2 balanced XLR.
Main: 2 RCA.
Headphones: 2 x 6,3 mm TRS.
USB: 1 USB 5V Power Port.

Vumeters

12 led channel pre-fader metering.
12 led dual post master metering.

Channels

Gain Phono: +-18dB.
Gain Line: +-18dB.

EQ controls
Bass

Cut: 300Hz.
Gain: -22dB +12dB.

Mid

Center Freq: 1000Hz.
Gain: -22dB +12dB.

Treble

Cut: 5000Hz.
Gain: -22dB +12dB.

Cue

Illuminated heavy duty
On/Off push switch.

Volume

Audio control via ALPS RK27
Blue Velvet Potentiometer.

Power Supply

External linear supply
16V AC 2A wall wart.

El producto será enviado desde Montevideo, Uruguay. Cualquier costo de envío y/o aranceles aduaneros corren por parte del comprador. Algunos pequeños detalles de diseño y/o valores de datos técnicos pueden variar en el producto final.

The product will be delivered from Montevideo, Uruguay. Any shipping costs and/or customs fees will be paid by the customer. The design and technical data are subject to possible minimum changes in the final product.
